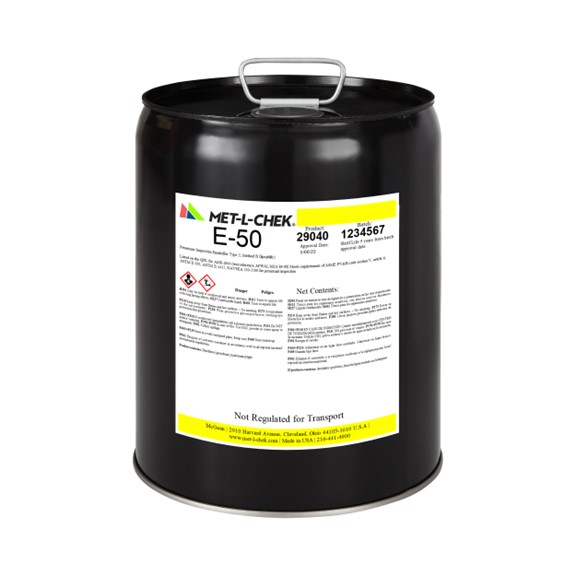

E-50 is a Method B (lipophilic) inspection penetrant emulsifier used with VP-31A red visible (Type 2) penetrant. It is designed to be sprayed onto the post emulsifiable penetrant to render the penetrant water wash. It is a fast acting emulsifier so very short contact time with the penetrant is required. Some users apply the emulsifier by brush and flow on techniques but these methods are not as efficient as spray.
E-50 emulsifier is ideal for use on rough castings and other metal surfaces which tend to retain penetrant readily, which causes high background and difficulty in evaluating indications.
E-50 is listed on the Qualified Products List for AMS-2644E. It meets the requirements of ASME Boiler and Pressure Vessel Code, ASTM E-165, and ASTM E-1417, for penetrant inspection materials.
E-50 is effective in rendering most light oily soils water wash and has been used as a pre-wash cleaner for tough to clean surfaces. It has found use as a concrete cleaner for the removal of oily residues. The emulsifier is applied, allowed to soak in for a few minutes , and then washed off with water spray.
Specifications
AMS-2644E
ASME B & PV code 07 sec V
ASTM E-165
ASTM E-1417
Typical Physical Properties
Form: clear liquid
Density: 780 g/L
Flash Point: > 62.2¢ªC (>144¢ªF)
Viscosity 1.7 mm2/s
Fluorescence: none
Corrosion of aluminum: none
Corrosion of carbon steel: none
Corrosion of magnesium: none
Corrosion of stainless steel: none
Corrosion of titanium: none
Chloride content: < 250 ppm (0.025%)
Fluoride content: < 100 ppm (0.01%)
Sulfur content: < 250 ppm (0.025%)
Mercury: none
VOC¡¯s: 774 g/L
Ozone layer depleting substances: none
PCB¡¯s: none
