DA-750 High Amp Portable Mag Unit


Parker Research DA-750 High Amp Portable Mag Unit

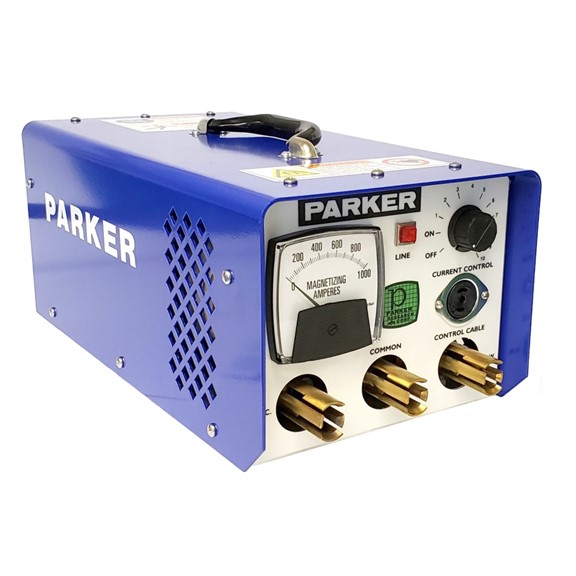

DA-750 Heavy Duty High Amp Portable Magnetic Inspection Unit

The Parker Research DA-750 heavy duty portable magnetic inspection unit provides high output AC or HWDC fields for magnetic particle inspection. Field selection is determined by using the appropriate field cable connector.

Current output is infinitely variable from zero to maximum by use of the current control located on the front panel, and is indicated by the panel meter. Actual current output is determined by cable size and length. AC magnetic fields offer the best sensitivity for detection of surface defect indications.

750 AMP OUTPUT: Operates from either 115 VAC, 1P or 230 VAC, 1P (must be specified.) The AC field is also beneficial for demagnetizing after inspection.

Half-Wave DC magnetic fields provide for the detection of certain subsurface defect indications. DC fields penetrate a cross section of the test area rather than just the surface. Optional magnetizing cables can be equipped with prods for circular magnetization. The cables can be wrapped around parts to form a coil for longitudinal magnetization. Demagnetization is accomplished in a similar manner.

Weight 45 lbs
Manufacturer / Brand
