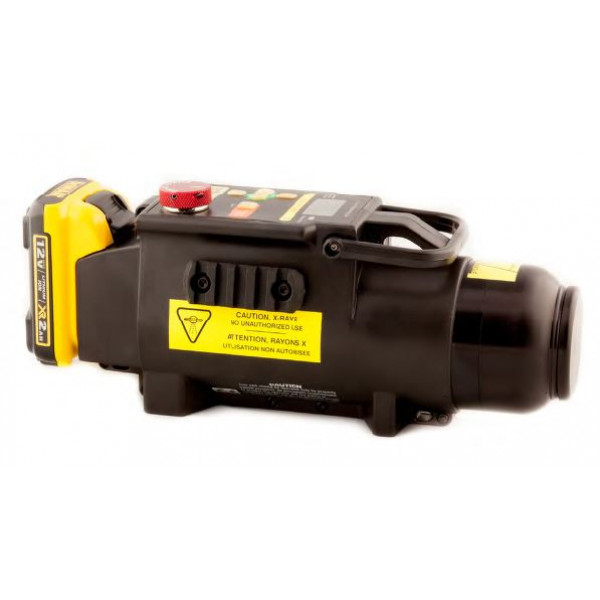

The XR150 is a battery powered pulsed X-Ray machine used for security and light industrial applications. The XR 150 weighs less than five pounds, but is capable of penetrating ½” of steel making it an ideal tool for use in remote locations.
New Features:
• Dial Key
• Back lit LCD
• Durable handle
• Five pin cable connector
• Weather resistant touch pad
• Variable pulse selection memory
• Custom Battery charger/conditioner/tester
SPECIFICATIONS
Length: 10.5 in. (26.5 cm)
Width: 3 in. ( 8 cm )
Height: 4 in. (10 cm)
Weight: 4 lbs. 5 oz. ( 2 Kg )
Number of counts per exposure: 1 to 99
Pulses per visible count: 3
Number of counts per battery charge: 2500
Number of counts per second: 10 (nominal)
Expected tube life: 50,000 counts
X-ray source size: 1/8 in. (3 mm)
Maximum photon energy: 150 KVP
X-ray pulse width: 50 nanoseconds. (.00000005 seconds)
Battery Voltage: 7.2 volts
Battery Type: Nickel Cadmium sub C cells. ( 6 )
Battery capacity: 2400 mAh.
Battery recharge time: 5 hours
Battery Charger: BC 150 charger/conditioner
Optional charger: Makita 7.2 /9.6 volt 1 hour charger
Electric input current: 14 amps (when connected to charged battery
Temperature range: -10˚ to 120˚ F (-23˚ to 50˚ C)
Maximum duty cycle: 200 counts every 8 minutes. (3000 per hour)
