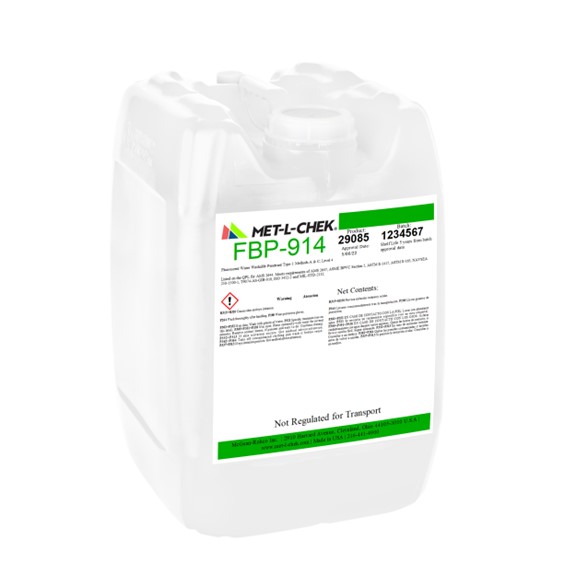

FBP-914 is approved to AMS-2644E as a fluorescent (Type 1); Methods “”A”” and “”C””; sensitivity level 4 water wash inspection penetrant. For Method “”C”” applications it is used with E-59, E-59A, R-503, and R-504. FBP-914 is applied by immersion, spray, or wipe on. It is approved for ultra high sensitivity aerospace applications.
FBP-914 is listed on the Qualified Products List for AMS-2644E. It meets the requirements of AMS-2647C, ASME Boiler and Pressure Vessel Code, ASTM E-165, and ASTM E-1417, and for penetrant inspection materials. It is low in sulfur and halogens and is safe for use on all metal surfaces. FBP-914 is a special oil and solvent free formulation which utilizes biodegradable components, and is VOC free.
Specifications
AMS-2644E AMS-2647C
ASME B & PV code 07 sec V
ASTM E-165 ASTM E-1417
ISO-3452-2005E
Honeywell EMS 52309 AB
RR RPS-702-7
Typical Physical Properties
Form: yellow green liquid
Density: 970 g/L
Flash Point: > 93¢ªC (> 200¢ªF)
Viscosity 26.4 mm2/s
Water Tolerance: > 20 %
Fluorescent Brightness: (AMS-2644 requirement > 95 %)
Corrosion of aluminum: none
Corrosion of carbon steel: none
Corrosion of magnesium: none
Corrosion of stainless steel: none
Corrosion of titanium: none
Chloride content: < 200 ppm (0.02%)
Fluoride content: < 50 ppm (0.005%)
Sodium content: < 100 ppm (0.01%)
Sulfur content: < 200 ppm (0.02%)
Mercury: none
VOC¡¯s: 0 g/L
Ozone layer depleting substances: none
PCB¡¯s: none
