XRS-4 X-Ray Source

$7,975.00

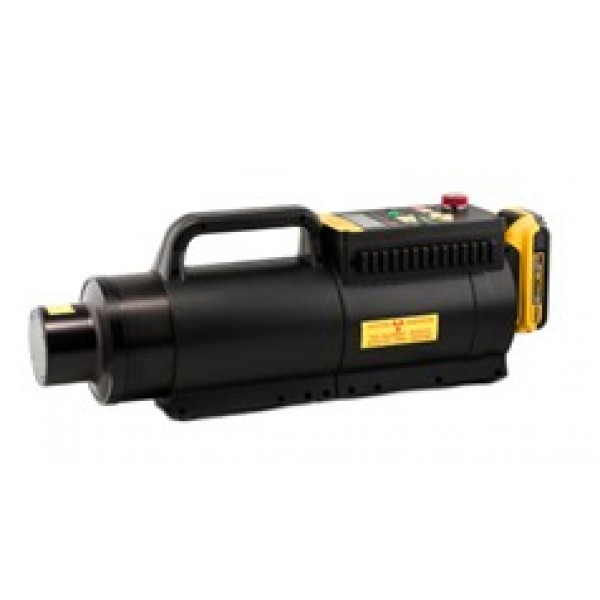

Golden Engineering XRS-4 X-Ray Source

The XRS-4 is a light duty X-ray machine. Pulsed X-Rays generate a high intensity X-Ray energy burst (pulse) in a very short period of time (15 nanoseconds). The output dose of each pulse is approximately 5mR measured 12 inches in front of the X-Ray machine. Maximum penetration is close to 2” of steel using a digital imaging system.

Pulsed X-Ray technology has inherent advantages for field operation compared to conventional constant potential X-Ray machines or radioactive material.

SPECIFICATIONS
Size (Including battery pack): 19.5″” (49.5 cm) x 4.5″” (11.5 cm) x 8.5″” (21.6 cm)
Weight (Including battery pack): 22 lbs. ( 10.5 Kg )
Output dose: 4.0 mR/pulse min, measured 12 inches from source
Pulse rate: 10 pulses per second
X-ray source size: 1/8 in. (3 mm)
Maximum photon energy: 370 KVP
X-ray pulse width: 15 nanoseconds
Current draw: 17 amps
Power supply: DeWalt® 18 volt, removable, rechargeable, nickel-cadmium battery
Battery recharge time: 1 hour with standard DeWalt® charger, 15 minute charger available
Maximum duty cycle: 200 pulses every 4 minutes
Warm-up: None required

Weight 1 lbs
