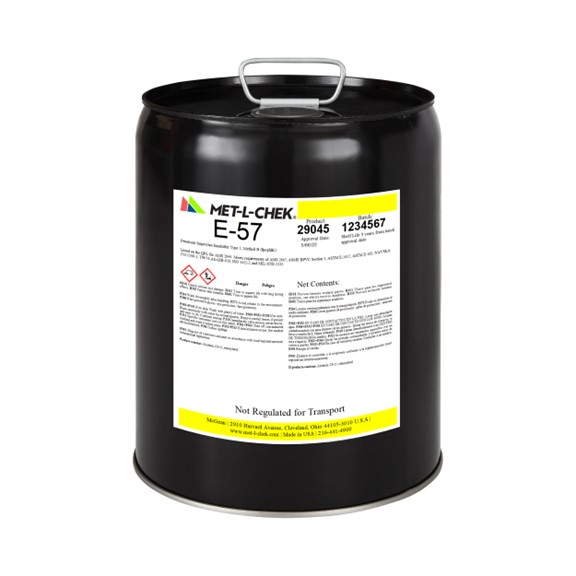

Met-L-Chek E-57 Emulsifier 5 Gal.

Met-L-Chek E-57 Emulsifier 5 Gal.

Call for Price

E-57 is a Method B (lipophilic) inspection penetrant emulsifier approved to AMS-2644 for use with FP-94, FP-93A(M), FP-95A(M), and FP-97A(M) fluorescent (Type 1) post emulsifiable penetrants. Method B emulsifiers are used either by immersion or flow on. The emulsifier is used as supplied. The penetrant covered part is immersed into the emulsifier and then removed and allowed to drain from 30 seconds to 3 minutes depending upon the part surface roughness. The emulsifier will render the PE penetrant water washable during the dwell time. This step is then followed by a wash step in the Method B process.

E-57 is listed on the Qualified Products List for AMS-2644E. It meets the requirements of ASME Boiler and Pressure Vessel Code, ASTM E-165, and ASTM E-1417, and for penetrant inspection materials.

Specifications
AMS-2644E
ASME B & PV code 07 sec V
ASTM E-165
ASTM E-1417
ISO-3452-2005E

Typical Physical Properties
Form: clear reddish orange viscous liquid
Density: 900 g/L
Flash Point: > 93¢ªC (> 200¢ªF)
Viscosity 34.0 mm2/s
Water content: 2.8%
Water tolerance: > 5%
Corrosion of aluminum: none
Corrosion of carbon steel: none
Corrosion of magnesium: none
Corrosion of stainless steel: none
Corrosion of titanium: none
Chloride content: < 250 ppm (0.025%)
Fluoride content: < 100 ppm (0.01%)
Sulfur content: < 250 ppm (0.025%)
Mercury: none
VOC¡¯s: 0 g/L
Ozone layer depleting substances: none
PCB¡¯s: none

Weight 49 lbs
Manufacturer / Brand

Method

B

Size

5 Gal.

Type

Lithophilic
