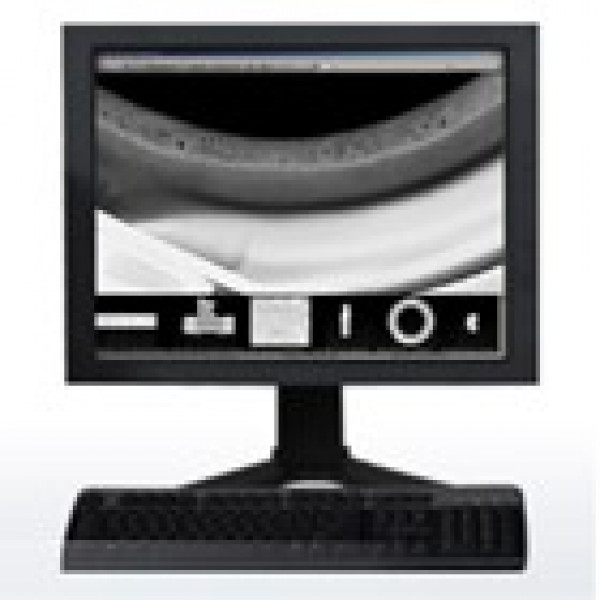

Work smarter with the new Industrex v4.1 Viewing Software. New EDGE automatic image processing filters improve workflow allowing users enhanced image views with the click of a button. Easily view density ranges for image details in light or dark areas. New Pipe Wall Thickness Tool and Object Measurement Reticle make measuring a snap. Enlarge areas of interest or colorize images for additional analysis capability. Maximize image management with quick image retrieval and traceability of altered images while the original remains intact. For use with the INDUSTREX HPX-1 Digital System.
EDGE Filter offers eight sets of parameters based on settings found to be most useful in practice, enables the user to view an image with increased detail and clarity.
Wall Thickness Measurement Tool calculates and displays:
• Single wall thickness
• Double wall thickness
• Minimum and maximum thicknesses in a defined ROI
Measurement Reticle provides measurements of radial distance from a central point
There are three different reticle types selectable in preferences: pinwheel (crosshair), concentric circles or both
• Automatic file control tracks who used the file last and any changes to the original
• Software can be easily connected to a user’s existing network
• Remote access via the network allows files to be shared worldwide
• CD creation through IDX: built-in capability to save files to CD or DVD
• Split-screen capability to compare multiple images easily
• Multiple user account password control
• Advanced user display preference settings
• Display DDL on plots
• Linear data support
• Sticky tools
• Window and level adjustment with indicator
• Contrast normalization
• Navigation thumbnail
• True size image display
• 1:1 printing
• Single or batch erase
• Windows® 7 Platform
• DICONDE compliant, designed specifically to comply with universal guidelines for image storage, retrieval and transmission
Image acquisition:
• Acquire from the INDUSTREX HPX-1 CR Reader
• Acquire via an Array™ 2905/2905HD Digitizer
• Acquire images from other DICONDE file source
