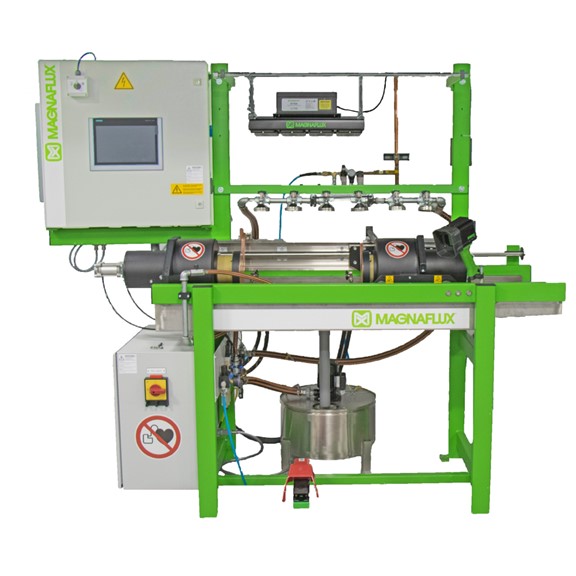

The Universal WE magnetic wet bench is multi-direction magnetic wet bench designed to completely magnetize the surfaceof parts up to 35 inches long in a single shot. Potentially cutting inspection time in half because the part can inspected in both directions at once. The Universal WE offers 200 – 2,000 Amps AC for contact shots and 1,500 – 15,000 Amp-turns AC for coil shots. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal.
Key Properties:
Universal WE | ||
---|---|---|
Magnetizing Current Capacity at Contacts (amps) | AC | 2,000 |
HWDCÂ | – | |
FWDC | – | |
Maximum Clamping Length | 35.4 in / 90 cm |
Benefits:
Faster part processing:
- Double your inspection speed by magnetizing parts in a single shot
- Fully inspect longer parts, up to 35.4 in / 90 cm, without requiring an auxiliary coil
- Speed up part processing with a large automated surface shower
Advanced process control:
- Maximize consistency between tests with 500 customer-programmable techniques
- Prevent accidental and unauthorized alterations with multiple user profiles and varying tiers of control for a range of operator experience levels
- Receive visual alerts when produced amperage is 90% or less than set amperage
Real-world dependability for minimal downtime:
- Siemens PLC provides reliable controls and off-the-shelf replacements
- Rely on our industry leading warranty with best in-class service delivered by a global network of trained Magnaflux authorized service centers
- Minimize downtime with standard spare parts package
Easy to use and maintain:
- Make quick operational adjustments using the simple, user-friendly operator interface with touch-screen controls
- External pump system provides fast access for easy cleaning and service
