Teledyne ICM Generators- Directional Units

Directional Units

Call for Pricing

SKU: Teledyne-0004 Categories: , , , , ,
SKU: Teledyne-0004 Categories: , , , , ,

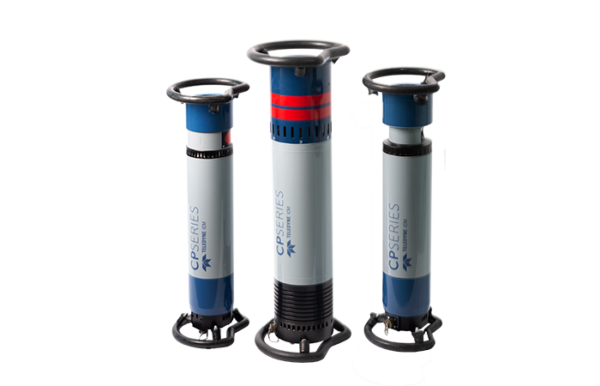

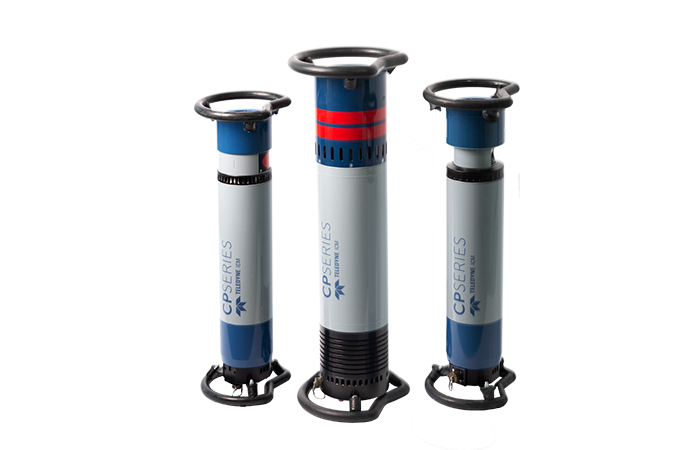

Teledyne ICM’s CPSERIES has been designed with a view to revolutionizing the handling and performances of portable X-Ray sets. Despite having managed to halve the weight of similar portable X-Ray generators available on the market (while continuing to provide the same power output), the CPSERIES generators feature a shutter, a laser pointer, a beryllium window, an aluminum filter, and two integrated diaphragms (customized sizes are available upon request). Without compromising the robustness and reliability for which ICM products are renowned, the small size and lightweight of the CPSERIES will radically change the way that you perform your RT inspections. And you will see a positive impact in terms of both quality and return on investment (ROI).


While the CP200D & CP300D weigh just 12 kg & 23 kg respectively, they are extremely powerful and capable of penetrating 42 mm (CP200D) and 66 mm (CP300D) of steel in just under 10 minutes. Furthermore, our unrivaled air-cooling system combined with the CP output translates into a 100 % duty cycle at 30°. Moreover, its broad input power range (from 90 to 264 VAC) enables the CPSERIES to be operated on virtually any grid in the world and generator sets. Finally, its low power consumption will ensure that your inspections are more cost-effective and environmentally friendly.

The CPSERIES has succeeded in setting new standards in terms of both handling and operating costs. It comes equipped with a number of intuitive yet exclusive user-friendly functions and characteristics that you will be able to benefit from on a daily basis. Furthermore, our exposure time computing software can be fed with your own exposure charts, which will result in improved accuracy for specific applications and types of materials. The POWERBOX control unit automatically detects the positioning of the carrousel to avoid shooting through the shutter by mistake. Additional outstanding features include V-shaped hand rings, constant power mode, radial or axial socket position, custom-length interconnecting cables (up to 100 m), a low voltage DC fan with variable speed, and much more.


Our SITEX and SITEXS are capable of the direct and accurate measurement of high voltage. This essential information enables the control system to guarantee the stability and reproducibility of the radiological parameters based on true high voltage, ensuring extremely precise measurements-based utilization.

With its internal ‘carousel’ that contains a lead cap and four diaphragms that are specifically calibrated to match all of the most common films, the SITEX directional generators will meet all of your requirements without the need to use extra fragile and space-consuming accessories.

An extra laser pointer has also been added to the SITEXS’ carousel to ensure added precision to your shots.
