16 Radiographs
20 Total Discontinues and 6 Processing Defects

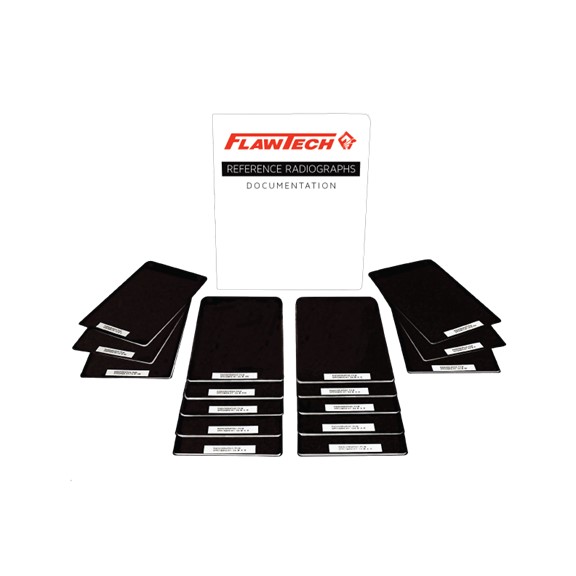

- Document Package Only: Certificate of Conformance, CAD Drawings, Test Sheets and Radiographs
- Film Set Contains: 16 Radiographs of 20 flaws and 6 Processing Defects
- Radiographs are of 10 carbon steel specimens as follows:
- (4) Plates: 0.375″T
- (3) Plates: 0.625″T
- (1) Tee: 0.375″T
- (2) Pipe: 4″ Sch80 (0.337″ wall
