Single Element WheelProbe

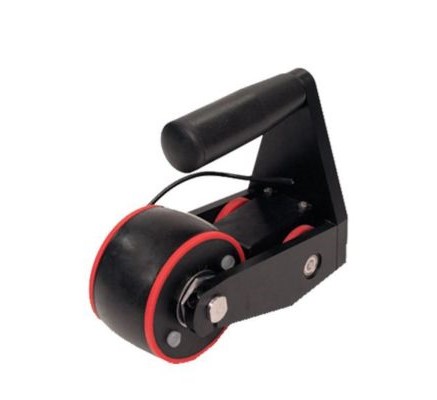

Single Element WheelProbe: Precision and Versatility

Experience unparalleled precision and versatility with the Single Element WheelProbe, featuring advanced Sonatest rubber technology for near-dry ultrasonic coupling.

Equipped with a single element 15 mm immersion probe, the WheelProbe operates seamlessly across a frequency range of 2 MHz to 10 MHz. Choose between a low-pressure 38 mm tyre or a high-pressure 25 mm tyre to suit your specific needs.

This innovative device includes an optical positioning encoder and is compatible with any conventional flaw detector, ensuring accurate and reliable results.

Key Features:

• Sensor Frequency: 1 MHz, 2 MHz, 5 MHz, and 10 MHz
• Number of Probe Elements: Single
• Active Area: 15 mm diameter probe
• External Dimensions (max): L: 175 mm, H: 135 mm, W: 90 mm
• Connectors Available: LEMO/BNC

Compatible with the Masterscan Series, the Single Element WheelProbe is your go-to solution for precise ultrasonic inspections.
