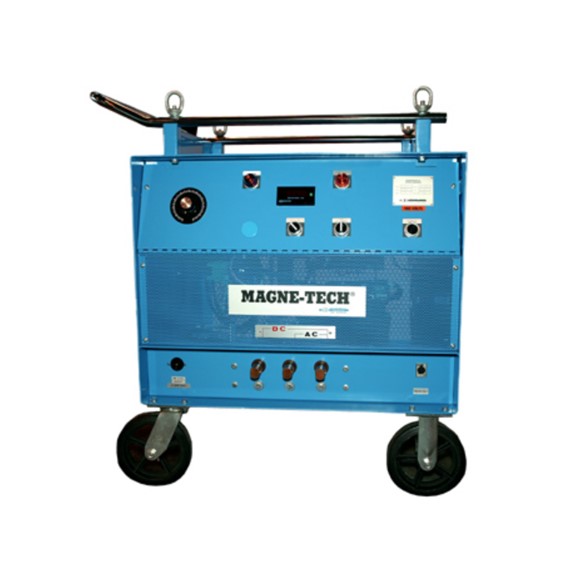

The Gould-Bass line of Magne-Tech® mobile magnetic particle inspection units are ruggedly constructed for long, maintenance free service. The advanced solid state circuitry greatly reduces the size and weight of the 1560W model.
The Model 1560W weighs only 550 pounds, producing excellent output per unit weight . This unit can be easily rolled around on their 8-inch heavy duty swivel casters, or can be maneuvered with a forklift. The Model 1560W is equipped with four lifting rings for overhead crane transport.
A special remote-control unit is available for use with the Model 1560W. It provides control of the magnetizing and demagnetizing current from a convenient hand-held unit. A remote On-Off switch on the front panel of the machine provides for quick selection of local or remote-controlled operation.
Key Applications for Magne-Tech® Mobiles
These self-contained, mobile unites can be moved or rolled anywhere in shop, foundry, refinery, petrochemical plant or manufacturing facilities to detect surface and near surface cracks by the MPI method.
The Magne-Tech® Model 1560W provides 6,000 amperes of alternating or half-wave direct current. Both localized and overall magnetization can be employed when inspecting diverse magnetic materials. The demagnetizing process is as simple as pushing a button with cables in place.
Simple to Operate
All operating controls and indicators are located on the recessed front panel. The easily read ammeter shows magnetizing current in either AC or half-wave DC operating modes. The AC mode minimizes background interference, permitting high sensitivity, speed, and accuracy of surface defect identification. The DC mode provides increased magnetic field penetration for detection of near surface discontinuities. A current adjustment control permits precise adjustment of the magnetizing current. The ammeter is protected against damage from rough handling, and all units are protected against overheating.
Features & Benefits
- Meets Military & Industry Specifications
- More output per unit weight & size
- 6,000 amp HWDC and AC
- Infinitely variable current control
- Digital ammeter with hold feature
- Fast, effective automatic AC demagnetization
- Thermal overload protection
- Rugged duty cycle
- Ideal for overall magnetization applications
- Simple to operate
- All controls recessed for damage control
- Ideal for localized prod and cable use
- Remote control feature operation available
- Storage well on top for cables and materials
- Convenient 115V outlet
