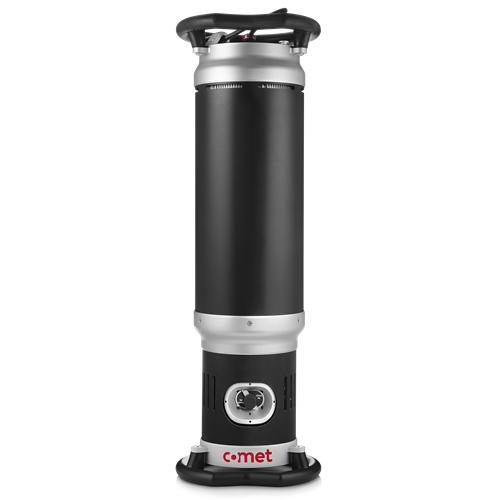

EVO series

Call For Pricing Options

SKU: Comet-00007 Categories: By Method, By Vendors, Comet, NDT Equipment, X-Ray

SKU: Comet-00007 Categories: By Method, By Vendors, Comet, NDT Equipment, X-Ray

Available Types:

EVO 300D/1200

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 6.5 mA

Weight [kg]: 36 kg

Beam type: Directional

Max. X-ray power [W]: 1200 W

Focal spot, EN 12543 [mm]: 3.0 mm

EVO 225D/1200

Nominal voltage [kV]: 225 kV

mA adjustment [mA]: 0.5 – 10.0 mA

Weight [kg]: 28 kg

Beam type: Directional

Max. X-ray power [W]: 1200 W

Focal spot, EN 12543 [mm]: 3.0 mm

EVO 300DS

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 4.5 mA

Weight [kg]: 29 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 300D

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 4.5 mA

Weight [kg]: 29 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 3.0 mm

EVO 225DS

Nominal voltage [kV]: 225 kV

mA adjustment [mA]: 0.5 – 5.5 mA

Weight [kg]: 26 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 225D

Nominal voltage [kV]: 225 kV

mA adjustment [mA]: 0.5 – 5.5 mA

Weight [kg]: 26 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 3.0 mm

EVO 200D

Nominal voltage [kV]: 200 kV

mA adjustment [mA]: 0.5 – 6.0 mA

Weight [kg]: 23 kg

Beam type: Directional

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 160D

Nominal voltage [kV]: 160 kV

mA adjustment [mA]: 0.5 – 7.0 mA

Weight [kg]: 22 kg

Beam type: Directional

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 300DSW

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 4.5 mA

Weight [kg]: 31 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 300DW

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 4.5 mA

Weight [kg]: 31 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 3.0 mm

EVO 225DSW

Nominal voltage [kV]: 225 kV

mA adjustment [mA]: 0.5 – 5.5 mA

Weight [kg]: 28 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 225DW

Nominal voltage [kV]: 225 kV

mA adjustment [mA]: 0.5 – 5.5 mA

Weight [kg]: 28 kg

Beam type: Directional

Max. X-ray power [W]: 900 W

Focal spot, EN 12543 [mm]: 3.0 mm

EVO 200DW

Nominal voltage [kV]: 200 kV

mA adjustment [mA]: 0.5 – 6.0 mA

Weight [kg]: 25 kg

Beam type: Directional

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 160DW

Nominal voltage [kV]: 160 kV

mA adjustment [mA]: 0.5 – 7.0 mA

Weight [kg]: 24 kg

Beam type: Directional

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 1.0 mm

EVO 300P

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 4.5 mA

Weight [kg]: 36 kg

Beam type: Panoramic

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 0.5 x 5.5 mm

EVO 200P

Nominal voltage [kV]: 200 kV

mA adjustment [mA]: 0.5 – 6.0 mA

Weight [kg]: 28 kg

Beam type: Panoramic

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 0.4 x 4.0 mm

EVO 300P CRAWLER PACKAGE

Nominal voltage [kV]: 300 kV

mA adjustment [mA]: 0.5 – 4.0 mA

Weight [kg]: 36 kg

Beam type: Panoramic

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 0.5 x 5.5 mm

EVO 200P CRAWLER PACKAGE

Nominal voltage [kV]: 200 kV

mA adjustment [mA]: 0.5 – 5.0 mA

Weight [kg]: 28 kg

Beam type: Panoramic

Max. X-ray power [W]: 750 W

Focal spot, EN 12543 [mm]: 0.4 x 4.0 mm

Manufacturer / Brand	Comet
