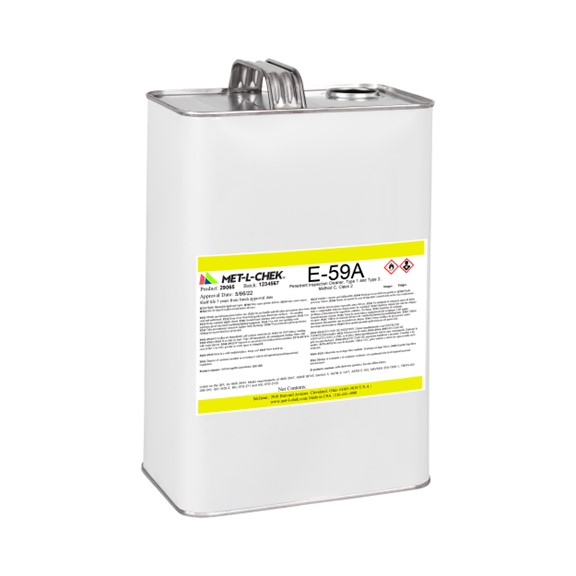

E-59A is a class 2 (non-halogenated), Method C inspection penetrant remover. It is designed for use in the solvent wipe technique for penetrant inspection in general metalworking, welding, nuclear and automotive applications. It is a moderate dry rate material and is ideal for penetrant wipe removal and pre-inspection surface cleaning. As a pre-cleaner it is sprayed directly on the test surface. As a penetrant remover it is sprayed onto wiping media and then the penetrant wiped from the surface.The remover should not be sprayed directly on to the test surface to remove the excess penetrant as the sensitivity will be impaired.
E-59A is listed on the Qualified Products List for AMS-2644E. It meets the requirements of AMS-2647, ASME Boiler and Pressure Vessel Code, ASTM E-165, ASTM E-1417, and ISO- 3452-2005 for penetrant inspection materials. It is low in Sulfur, Chlorine, Fluorine and other Halogens, making it safe for use on Titanium and high Nickel alloys found in aerospace, medical and nuclear components.
E-59A contains flammable solvents and should not be used in confined spaces or near open flames or sparks.
ASME B & PV code 07 sec V
ASTM E-165 ASTM E-1417
RCC-M rev 2000
Typical Physical Properties
Form: clear liquid
Density: 743 g/L (6.2 lb/gl)
Flash Point: >12.7¢ªC (>55¢ªF)
Corrosion of aluminum: none
Corrosion of carbon steel: none
Corrosion of magnesium: none
Corrosion of stainless steel: none
Corrosion of titanium: none
Residue: < 0.005 g/100 ml
Chloride content: < 50 ppm (< 0.005%)
Fluoride content: < 50 ppm (< 0.005%)
Sulfur content: < 100 ppm (< 0.01%)
VOC¡¯s: 743 g/L
Ozone layer depleting substances: none
