CRxVision

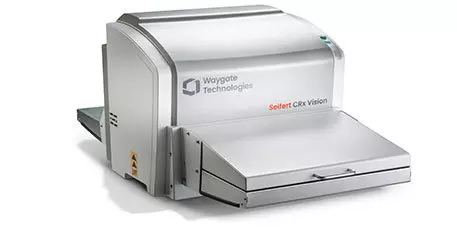

CRxVision is a high-resolution weld inspection and all-purpose computed radiography scanner from Waygate Technologies.

The scanner is developed to cover the stringent ISO 17636-2 Class A and B requirements, as well as ASTM, ASME and EN weld standards. Because of its versatility, it can also be used for many other applications across the NDT industry.

Benefits of the CRxVision

  • Compliant to ISO 17636-2 Class A and B, ASME, ASTM and EN weld inspection standards
  • The CRxVision has an extremely wide latitude eliminating the need for multiple gain settings
  • Exposure times for welds are equal or better than existing film exposure times
  • The scanner allows multiple imaging plates to be scanned simultaneously
  • Imaging plates can be exposed in any type of cassette, then simply removed and inserted directly into the scanner
  • A new innovative imaging plate design now provides the CRxVision imaging plates with more flexibility
Features
  • Flexible accepting a wide range of sizes, shapes and classes of imaging plates
  • Intuitive no gain setting or photomultiplier adjustments required when exposing various thicknesses
  • Fast multiple plate scanning option: side-by-side and back-to-back with a flat transport path
  • High Resolution new laser optics for profound reading and higher data extraction
  • Extended Plate Life no mechanical handling of the imaging plate during scanning and erasing
  • ASTM DICONDE Compliant fully compatible with Waygate Technologies existing Rhythm Software Platform
  • Ambient Operation cover protects the imaging plate from light exposure
  • Direct Laser Contact the laser beam is in direct contact with the imaging plate (no glass to obscure data collection)
Applications:
Even though the CRxVision was designed for the inspection of welds, it also has the ability to cover a wide range of industrial radiography applications

  • Weld inspection
  • Erosion/Corrosion inspection (CUI, FAC, etc.)
  • Castings (In-process and final)
  • Valve positioning
  • Concrete and Structure inspection
  • Government (Arsenals, National Laboratories, Proving Grounds)
  • Military (in-service aircraft, ships, etc.)
