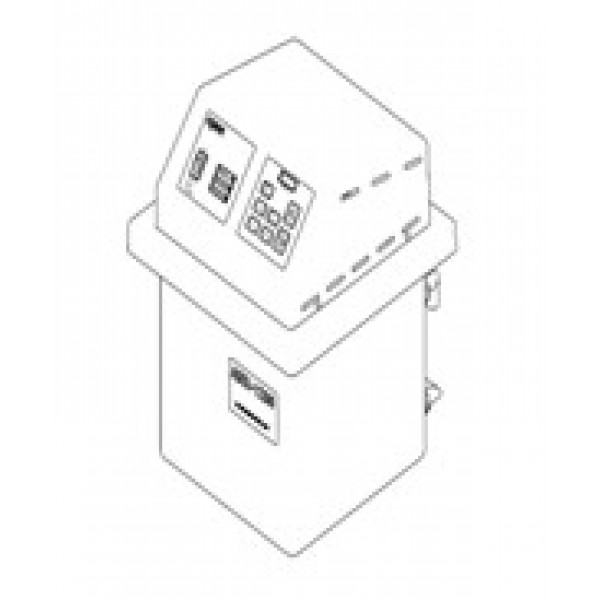

ARU 700, ARU-1200 and ARU-2100 models feature state of the art digital microprocessor controls, digital display, and keypad for easy calibration and information storage. These models automatically control and optimize plating current as the silver concentration varies in the fixer solution.
Specifications:
Recovery Capacity: 3 Troy oz/hour
Typical Application: 8 gal/8 hrs
Tank Capacity: 9 gal
Tank Dimensions: 15” W x 15” D x 27” H
Cylindrical Cathodes: 8” D x 6” H
Shipping Weight: 47 lbs
Electrical: 115/230 VAC
Power Requirements: 50/60 Hz 50W max.
Locking Feature: Yes
Inlet/Outlet Tubing: ¾” ID-10’
Typical Plating Range: 1-12 Amps
Inlet Height: 9 ½”
Outlet Height: 8 ¼”
Minimum silver concentration 0.5 gm/l (0.056 Troy oz/gal) pH 4.5; maximum silver concentration 5.0 gm/l (0.63 Troy oz/gal) pH 4.5
Semi-Automatic Operation
