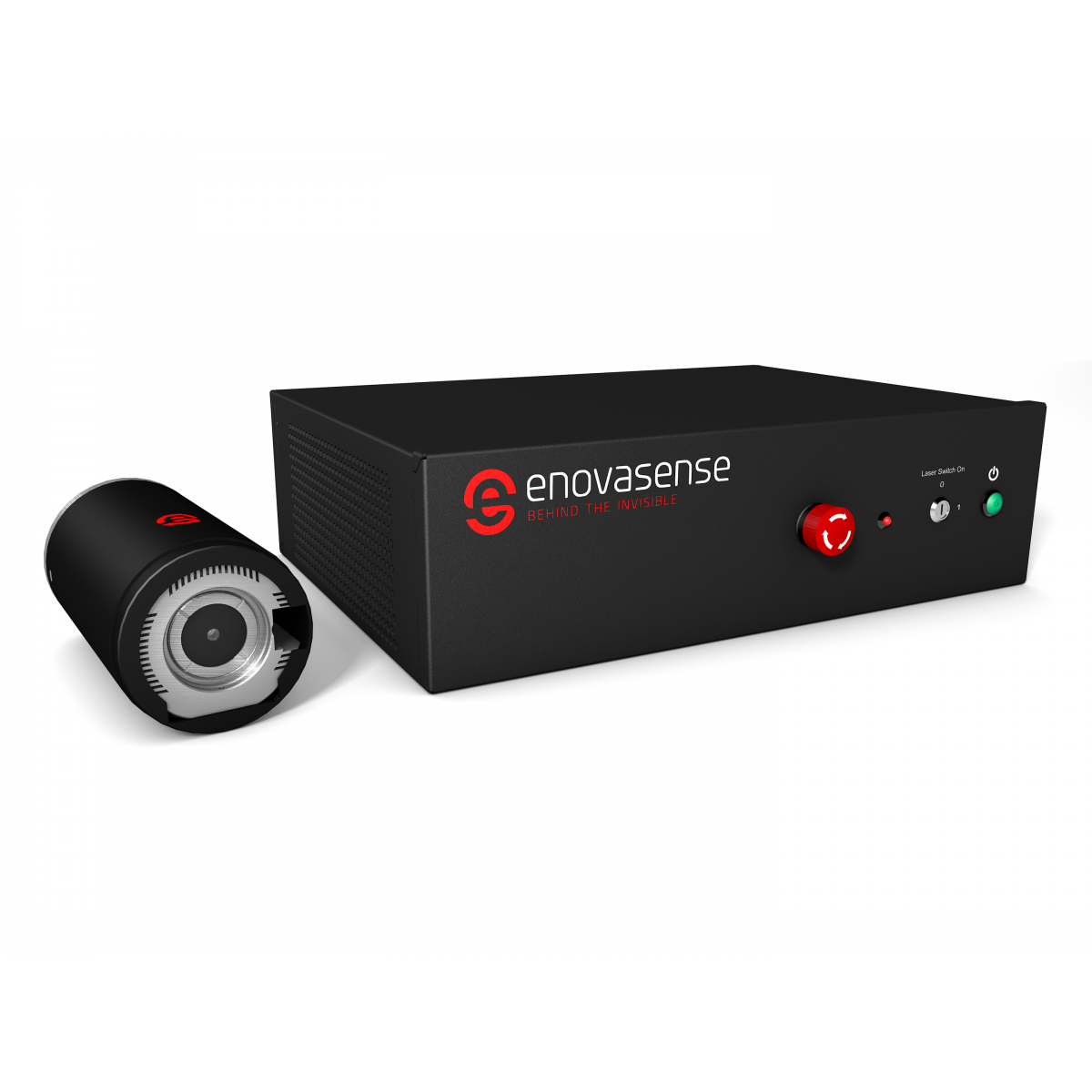

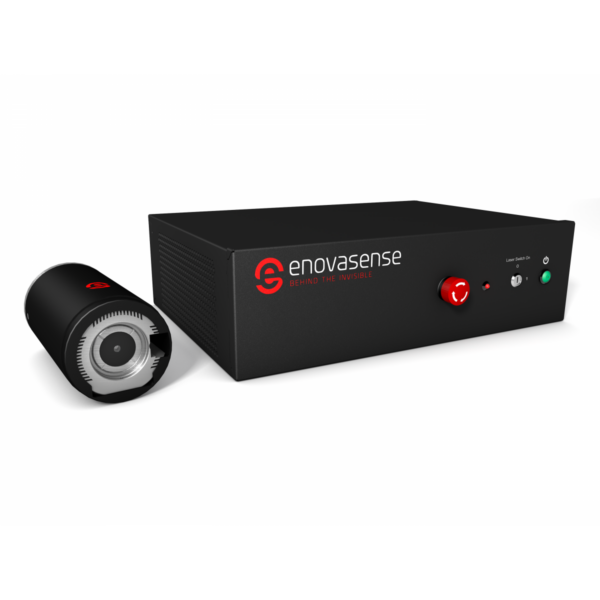

1T031L Measuring Head Industrial

Coatings Thickness Measurement Device

Call for Pricing

SKU: enov-0001 Categories: , , , ,
SKU: enov-0001 Categories: , , , ,
Thick metallic coatings

Measuring range 1µm-1mm
Accuracy <2µm
Repeatability 1µm
Angle tolerance ±2°

Paints and polymeric, organic coatings

Measuring range 1µm-500µm
Accuracy <0.5µm
Repeatability 0.3µm
Angle tolerance ±30°

Submicrometric coatings (physical, metallic…)

Measuring range 10nm-1µm
Accuracy <20nm
Repeatability 10nm
Angle tolerance ±10°

Measuring duration: 0,1s to 2s
Optical power: 0,01W to 10W
Distance between probe and part: 40mm ± 1 to 10mm with standard head/450mm ± 100mm with long distance objective (option)

Spot sizes: Ø 0,3mm – 0,6mm – 2mm – 10mm
Minimum repetition time: 0,1s
Dimensions: Measuring head : 120 x 66 x 66 mm/Command box : 373 x 247 x 88 mm
Weight: Measuring head : 0,18 kg/Command box : 3 kg
Length of the cables between measuring head and command box: 1 – 20 m
Power input: 100 – 240 Vac 50 – 60 Hz 4.5 – 2.5 A
Room temperature: 0-50°C
Part temperature: 0-40°C without correction/0-800°C with correction
Data communication protocol: TCP/IP – Ethernet IP
Input protocol: TTL 0-5V

Performances depending on the applications
